AEM Content Fragments: Links Localization. Part 2

Exadel Digital Experience Team Tech Insights November 30, 2021 8 min read

Table of contents

Tags

In the previous article, we took a look at how to set up a translation project and correctly configure links rewriting during New Lang copy creation. Now we’re going to look at more cases you might encounter during links localization and how to approach a variety of situations.

Update All AEM Content Fragment Variations (Language Copy)

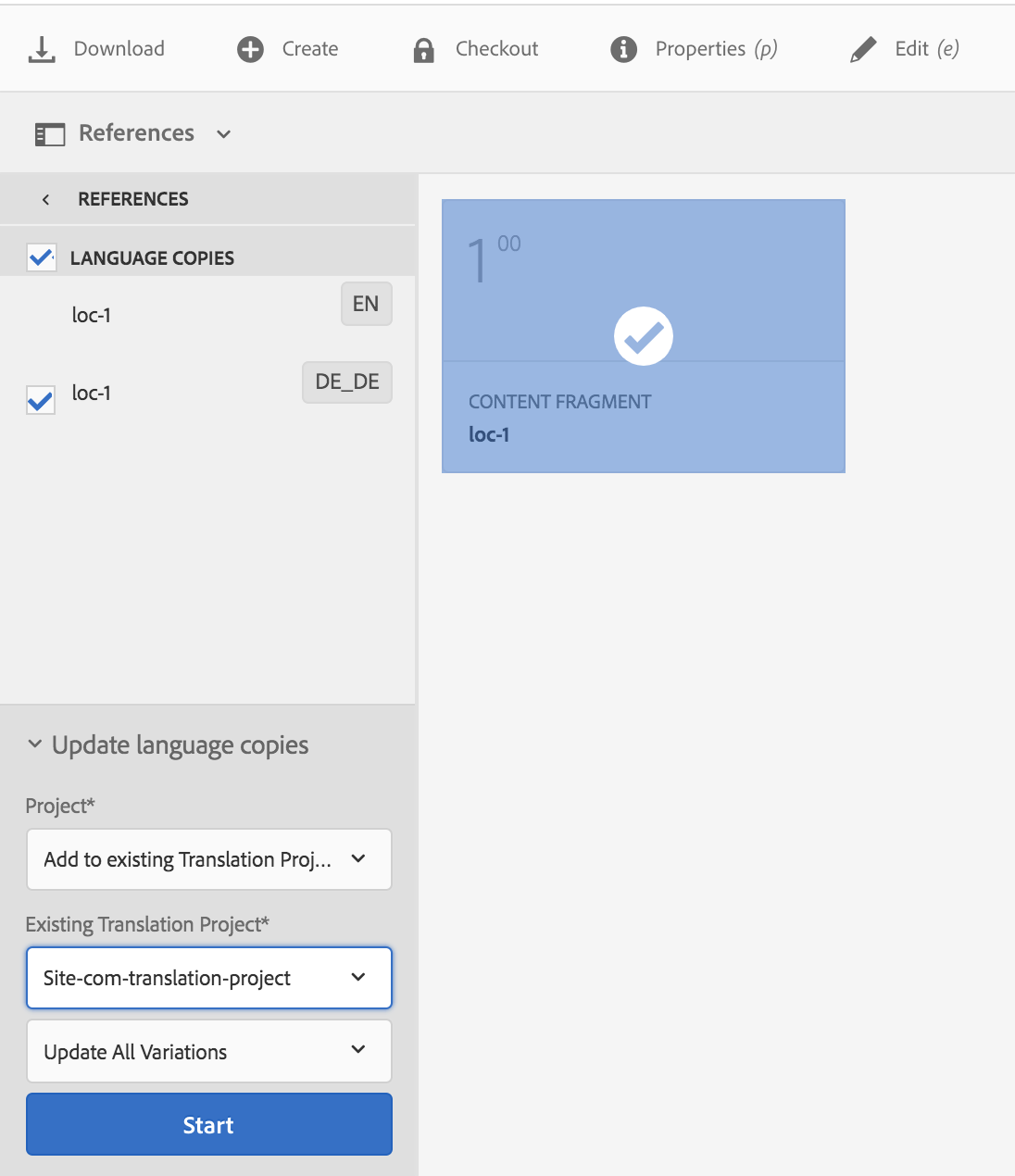

Before we can update a language copy (all variations), we have to:

  • Select your CF
  • Click References → Language copies
  • Check locales to update
  • Select Add to existing translation project
  • Then select our Site-com-translation-project created before
  • Select Update All variations
  • Click Start

AEM’s ‘’DAM Update Language Copy” workflow is being triggered. We’ll have to introduce a new step for this WF to localize the links correctly.

ContentFragmentUpdateLanguageCopyProcess.java:
Copy Code
package com.wcm.site.workflow;

import com.adobe.acs.commons.util.WorkflowHelper;
import com.adobe.acs.commons.util.visitors.TraversalException;
import com.adobe.acs.commons.util.visitors.TreeFilteringResourceVisitor;
import com.adobe.granite.workflow.WorkflowException;
import com.adobe.granite.workflow.WorkflowSession;
import com.adobe.granite.workflow.exec.WorkItem;
import com.adobe.granite.workflow.exec.WorkflowData;
import com.adobe.granite.workflow.exec.WorkflowProcess;
import com.adobe.granite.workflow.metadata.MetaDataMap;
import com.day.cq.dam.commons.util.DamLanguageUtil;
import com.day.cq.wcm.api.PageManagerFactory;
import com.day.cq.wcm.msm.api.LiveRelationshipManager;
import com.wcm.site.util.AssetUtils;
import org.apache.commons.lang3.StringUtils;
import org.apache.sling.api.resource.Resource;
import org.apache.sling.api.resource.ResourceResolver;
import org.osgi.service.component.annotations.Component;
import org.osgi.service.component.annotations.Reference;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import javax.jcr.Session;
import java.util.Arrays;

import static com.wcm.site.util.CFMUtils.isContentFragment;
import static com.wcm.site.workflow.WorkflowProcessBase.WORKFLOW_PROCESS_LABEL;

@Component(immediate = true, service = WorkflowProcess.class, property = {
        WORKFLOW_PROCESS_LABEL + "=Site.com Content Fragment Update Language Copy" })
public class ContentFragmentUpdateLanguageCopyProcess extends WorkflowProcessBase implements WorkflowProcess {
    private static final Logger LOG = LoggerFactory.getLogger(ContentFragmentUpdateLanguageCopyProcess.class);
    private static final String TRANSLATE_LANGUAGES_KEY_NAME = "translateLanguages";

    @Reference
    private WorkflowHelper workflowHelper;

    @Reference
    private PageManagerFactory pageManagerFactory;

    @Reference
    private LiveRelationshipManager liveRelationshipManager;

    @Override
    public void execute(WorkItem workItem, WorkflowSession workflowSession, MetaDataMap metaData) throws WorkflowException {
        ResourceResolver resourceResolver = getResourceResolver(workflowHelper, workflowSession);
        String sourcePath = getTargetPath(workItem, true);
        Resource source = resourceResolver.getResource(sourcePath);
        WorkflowData data = workItem.getWorkflowData();
        MetaDataMap metaDataMap = data.getMetaDataMap();

        if (AssetUtils.isFolder(source)) {
            processFolder(workItem, workflowSession, source, metaDataMap);
            workflowSession.terminateWorkflow(workItem.getWorkflow());
            return;
        }

        if (source == null || !isContentFragment(source)) {
            LOG.error("Resource not found or not content fragment {}", sourcePath);
            return;
        }

        String updateLanguages = metaDataMap.get(TRANSLATE_LANGUAGES_KEY_NAME, StringUtils.EMPTY);
        if (StringUtils.isEmpty(updateLanguages)) {
            LOG.error("Update languages list is empty, exiting");
            return;
        }
        String[] updateLanguagesArr = StringUtils.split(updateLanguages, ";");

        Arrays.stream(updateLanguagesArr).forEach(language ->
            DamLanguageUtil.replaceUpdatedAsset(sourcePath,
                    getTargetLanguageCopyPath(sourcePath, language, resourceResolver, null),
                    resourceResolver.adaptTo(Session.class),
                    pageManagerFactory,
                    resourceResolver

            )
        );
    }


    private void processFolder(WorkItem workItem, WorkflowSession workflowSession, Resource source, MetaDataMap metaData) {
        try {
            TreeFilteringResourceVisitor cfVisitor = new TreeFilteringResourceVisitor();
            cfVisitor.setTraversalFilter(resource -> cfVisitor.isFolder(resource) || isContentFragment(resource));
            cfVisitor.setResourceVisitor((resource, level) -> {
                if (isContentFragment(resource)) {
                    startWorkflow(workflowSession, workItem.getWorkflow().getWorkflowModel().getId(), resource.getPath(), metaData);
                }
            });

            cfVisitor.accept(source);
        } catch (TraversalException e) {
            LOG.error("Exception", e);
        }
    }


    public static Resource getTargetLanguageCopyResource(String sourcePath, String language, ResourceResolver resolver) {
        return Optional.ofNullable(DamLanguageUtil.getLanguageCopy(sourcePath, language, resolver))
                .map(asset -> asset.adaptTo(Resource.class))
                .orElse(null);
    }

    public static String getTargetLanguageCopyPath(String sourcePath, String language, ResourceResolver resolver, String fallback) {
        if (isFolder(resolver.getResource(sourcePath))) {
            PathContext context = new PathContext(sourcePath);
            String targetPath = StringUtils.removeEnd(context.getPathWithLocale(language), "/");
            return resolver.getResource(targetPath) != null ? targetPath : fallback;
        }
        return Optional.ofNullable(getTargetLanguageCopyResource(sourcePath, language, resolver))
                .map(Resource::getPath)
                .orElse(fallback);
    }


}
See more See less

And the workflow itself /var/workflow/models/dam/dam-update-language-copy.xml:
Copy Code
<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
    jcr:primaryType="cq:WorkflowModel"
    sling:resourceType="cq/workflow/components/model"
    description="This workflow updates language copies for assets"
    title="DAM Update Language Copy">
    <metaData
        cq:generatingPage="/conf/global/settings/workflow/models/dam/dam-update-language-copy/jcr:content"
        cq:lastModified="{Long}1610816334147"
        cq:lastModifiedBy="admin"
        jcr:primaryType="nt:unstructured"/>
    <nodes jcr:primaryType="nt:unstructured">
        <node0
            jcr:primaryType="cq:WorkflowNode"
            title="Start"
            type="START">
            <metaData jcr:primaryType="nt:unstructured"/>
        </node0>
        <node1
            jcr:primaryType="cq:WorkflowNode"
            description="Updates language copy of assets"
            title="Update Language Copy"
            type="PROCESS">
            <metaData
                jcr:primaryType="nt:unstructured"
                PROCESS="com.day.cq.dam.core.impl.process.UpdateAssetLanguageCopyProcess"
                PROCESS_AUTO_ADVANCE="true"/>
        </node1>
        <node2
            jcr:primaryType="cq:WorkflowNode"
            title="Site.com Content Fragment Update Language Copy"
            type="PROCESS">
            <metaData
                jcr:primaryType="nt:unstructured"
                PROCESS="com.wcm.site.workflow.ContentFragmentUpdateLanguageCopyProcess"
                PROCESS_AUTO_ADVANCE="true"/>
        </node2>
        <node3
            jcr:primaryType="cq:WorkflowNode"
            title="Content Fragment Localisation WFs Starter"
            type="PROCESS">
            <metaData
                jcr:primaryType="nt:unstructured"
                PROCESS="com.wcm.site.workflow.ContentFragmentLocalisationWFStarterProcess"
                PROCESS_ARGS="modelId:/var/workflow/models/site/cf-localisation-workflow"
                PROCESS_AUTO_ADVANCE="true"/>
        </node3>
        <node4
            jcr:primaryType="cq:WorkflowNode"
            title="End"
            type="END">
            <metaData jcr:primaryType="nt:unstructured"/>
        </node4>
    </nodes>
    <transitions jcr:primaryType="nt:unstructured">
        <node0_x0023_node1
            jcr:primaryType="cq:WorkflowTransition"
            from="node0"
            rule=""
            to="node1">
            <metaData jcr:primaryType="nt:unstructured"/>
        </node0_x0023_node1>
        <node1_x0023_node2
            jcr:primaryType="cq:WorkflowTransition"
            from="node1"
            rule=""
            to="node2">
            <metaData jcr:primaryType="nt:unstructured"/>
        </node1_x0023_node2>
        <node2_x0023_node3
            jcr:primaryType="cq:WorkflowTransition"
            from="node2"
            rule=""
            to="node3">
            <metaData jcr:primaryType="nt:unstructured"/>
        </node2_x0023_node3>
        <node3_x0023_node4
            jcr:primaryType="cq:WorkflowTransition"
            from="node3"
            rule=""
            to="node4">
            <metaData jcr:primaryType="nt:unstructured"/>
        </node3_x0023_node4>
    </transitions>
</jcr:root>
See more See less

Update AEM Content Fragment Single Variation

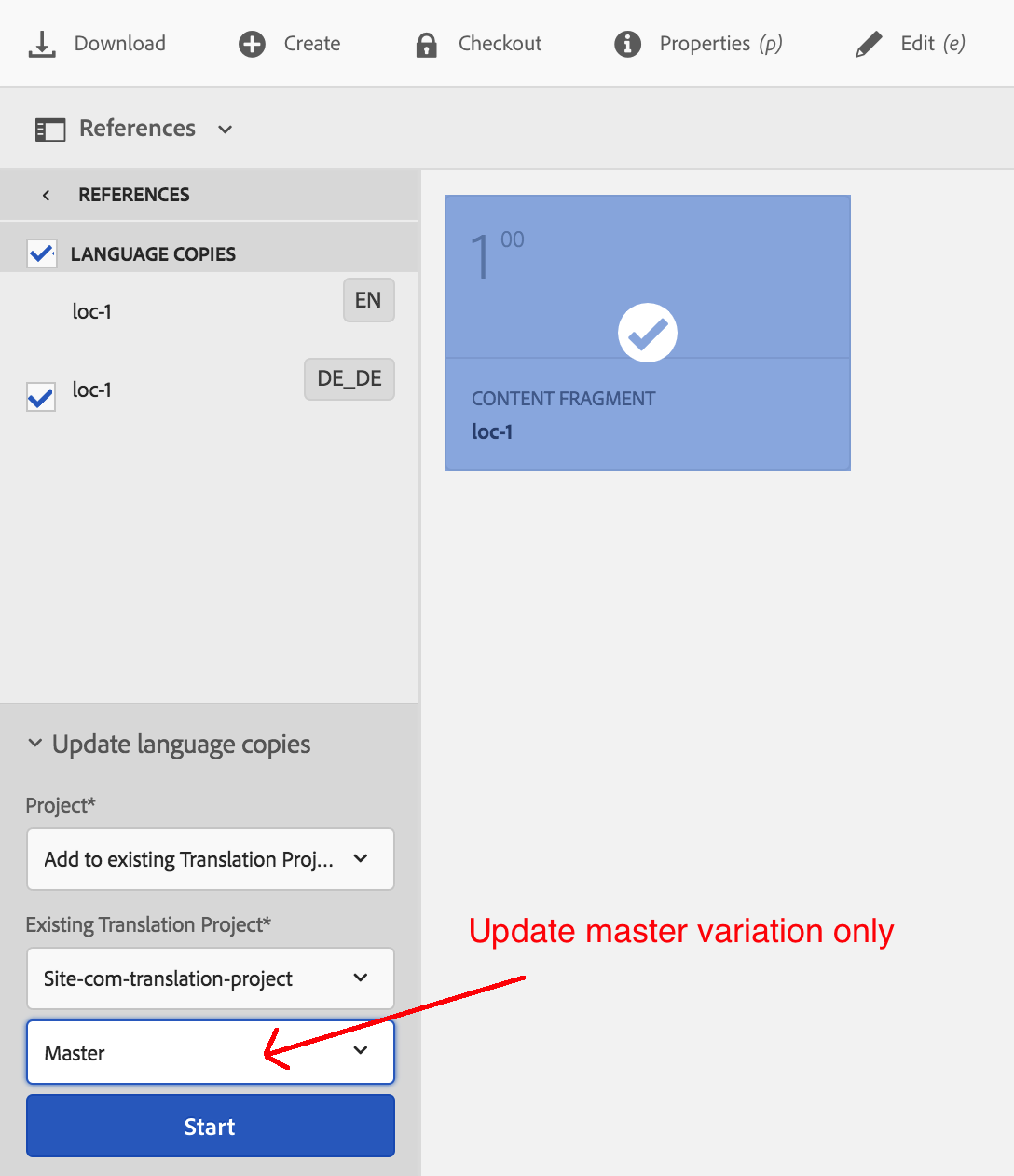

If we want to update one particular content fragment variation rather than all, a different AEM WF is triggered, so we have to make some adjustments.

ContentFragmentUpdateVariationLanguageCopyProcess.java
Copy Code
package com.wcm.site.workflow;

import com.adobe.acs.commons.util.WorkflowHelper;
import com.adobe.cq.dam.cfm.ContentFragment;
import com.adobe.granite.workflow.WorkflowSession;
import com.adobe.granite.workflow.exec.WorkItem;
import com.adobe.granite.workflow.exec.WorkflowData;
import com.adobe.granite.workflow.exec.WorkflowProcess;
import com.adobe.granite.workflow.metadata.MetaDataMap;
import com.day.cq.wcm.api.PageManagerFactory;
import com.day.cq.wcm.msm.api.LiveRelationshipManager;
import com.wcm.site.localization.PathContext;
import com.wcm.site.util.CFMUtils;
import com.wcm.site.util.ResourceUtils;
import org.apache.commons.lang3.ObjectUtils;
import org.apache.commons.lang3.StringUtils;
import org.apache.sling.api.resource.*;
import org.osgi.service.component.annotations.Component;
import org.osgi.service.component.annotations.Reference;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.util.Arrays;
import java.util.Calendar;
import java.util.Optional;

import static com.day.cq.commons.jcr.JcrConstants.*;
import static com.wcm.site.util.CFMUtils.getCFVariationPath;
import static com.wcm.site.util.CFMUtils.isContentFragment;
import static com.wcm.site.util.LinkUtils.joinAsPath;
import static com.wcm.site.workflow.WorkflowProcessBase.WORKFLOW_PROCESS_LABEL;

@Component(immediate = true, service = WorkflowProcess.class, property = {
        WORKFLOW_PROCESS_LABEL + "=Site.com Content Fragment Update Variation Language Copy" })
public class ContentFragmentUpdateVariationLanguageCopyProcess extends WorkflowProcessBase implements WorkflowProcess {
    private static final Logger LOG = LoggerFactory.getLogger(ContentFragmentUpdateVariationLanguageCopyProcess.class);
    private static final String VARIATION_KEY_NAME = "variation";
    private static final String MASTER_VARIATION_NAME = "master";


    @Reference
    private WorkflowHelper workflowHelper;

    @Reference
    private PageManagerFactory pageManagerFactory;

    @Reference
    private LiveRelationshipManager liveRelationshipManager;

    @Override
    public void execute(WorkItem workItem, WorkflowSession workflowSession, MetaDataMap metaData) {
        try {
            ResourceResolver resourceResolver = getResourceResolver(workflowHelper, workflowSession);
            String sourcePath = getTargetPath(workItem, true);
            Resource source = resourceResolver.getResource(sourcePath);

            if (source == null || !isContentFragment(source)) {
                LOG.error("Resource not found or not content fragment {}", sourcePath);
                return;
            }

            WorkflowData data = workItem.getWorkflowData();
            MetaDataMap metaDataMap = data.getMetaDataMap();

            String updateLanguages = metaDataMap.get(TRANSLATE_LANGUAGES_KEY_NAME, StringUtils.EMPTY);
            String variationName = metaDataMap.get(VARIATION_KEY_NAME, StringUtils.EMPTY);
            if (StringUtils.isAnyEmpty(updateLanguages, variationName)) {
                LOG.error("Update languages list or variation is empty, exiting");
                return;
            }
            String[] updateLanguagesArr = StringUtils.split(updateLanguages, ";");

            Arrays.stream(updateLanguagesArr).forEach(language ->
                        copyOrReplaceVariation(resourceResolver, sourcePath, variationName, language));

            if (resourceResolver.hasChanges()) {
                resourceResolver.commit();
            }
        } catch (Exception e) {
            LOG.error("Exception", e);
        }

    }

    private void copyOrReplaceVariation(ResourceResolver resourceResolver, String sourcePath, String variationName, String language) {
        PathContext context = new PathContext(sourcePath);
        try {
            Resource targetLanguageCopy = getTargetLanguageCopyResource(sourcePath, language, resourceResolver);
            Optional.ofNullable(targetLanguageCopy)
                    .map(resource -> resource.adaptTo(ContentFragment.class))
                    .ifPresent(CFMUtils::createVersion);

            Resource destinationData = resourceResolver.getResource(StringUtils.removeEnd(getCFVariationPath(context.getPathWithLocale(language), StringUtils.EMPTY), "/"));
            Resource destinationModel = ResourceUtil.getOrCreateResource(resourceResolver, StringUtils.removeEnd(getCFModelVariationPath(context.getPathWithLocale(language), StringUtils.EMPTY), "/"), NT_UNSTRUCTURED, NT_UNSTRUCTURED, true);
            if (!ObjectUtils.allNotNull(destinationData, destinationModel)) {
                LOG.error("destination is null");
                return;
            }

            Resource variationDataResource = destinationData.getChild(variationName);
            Resource variationModelResource = destinationModel.getChild(variationName);

            ResourceUtils.delete(resourceResolver, variationDataResource);
            ResourceUtils.delete(resourceResolver, variationModelResource);

            if (resourceResolver.hasChanges()) {
                resourceResolver.commit();
            }

            resourceResolver.copy(getCFVariationPath(sourcePath, variationName), destinationData.getPath());
            if (!MASTER_VARIATION_NAME.equalsIgnoreCase(variationName)) {
                resourceResolver.copy(getCFModelVariationPath(sourcePath, variationName), destinationModel.getPath());
            }

            Optional.ofNullable(targetLanguageCopy)
                    .map(resource -> resource.getChild(JCR_CONTENT))
                    .map(resource -> resource.adaptTo(ModifiableValueMap.class))
                    .ifPresent(valueMap -> {
                            valueMap.put(JCR_LASTMODIFIED, Calendar.getInstance());
                            valueMap.put(JCR_LAST_MODIFIED_BY, resourceResolver.getUserID());
                    });

        } catch (PersistenceException e) {
            LOG.error("Exception", e);
        }
    }

    private String getCFModelVariationPath(String cfPath, String variation) {
        return joinAsPath(cfPath, JCR_CONTENT, "model/variations", variation);
    }
}
See more See less

And a workflow config to change /var/workflow/models/dam/dam-update-variation-language-copy.xml:
Copy Code
<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
    jcr:isCheckedOut="{Boolean}false"
    jcr:primaryType="cq:WorkflowModel"
    jcr:uuid="6eee1ae2-6cf2-457a-a0f8-d6fbc0c96b38"
    sling:resourceType="cq/workflow/components/model"
    description="This workflow updates language copies variations for assets"
    title="DAM Update Variation Language Copy">
    <metaData
        cq:generatingPage="/conf/global/settings/workflow/models/dam/dam-update-variation-language-copy/jcr:content"
        cq:lastModified="{Long}1612297043045"
        cq:lastModifiedBy="admin"
        jcr:primaryType="nt:unstructured"/>
    <nodes jcr:primaryType="nt:unstructured">
        <node0
            jcr:primaryType="cq:WorkflowNode"
            title="Start"
            type="START">
            <metaData jcr:primaryType="nt:unstructured"/>
        </node0>
        <node1
            jcr:primaryType="cq:WorkflowNode"
            description="Updates language copy of assets"
            title="Update Language Copy Variation"
            type="PROCESS">
            <metaData
                jcr:primaryType="nt:unstructured"
                PROCESS="com.wcm.site.workflow.ContentFragmentUpdateVariationLanguageCopyProcess"
                PROCESS_AUTO_ADVANCE="true"/>
        </node1>
        <node2
            jcr:primaryType="cq:WorkflowNode"
            title="Content Fragment Localisation WFs Starter"
            type="PROCESS">
            <metaData
                jcr:primaryType="nt:unstructured"
                PROCESS="com.wcm.site.workflow.ContentFragmentLocalisationWFStarterProcess"
                PROCESS_ARGS="modelId:/var/workflow/models/site/cf-localisation-workflow"
                PROCESS_AUTO_ADVANCE="true"/>
        </node2>
        <node3
            jcr:primaryType="cq:WorkflowNode"
            title="End"
            type="END">
            <metaData jcr:primaryType="nt:unstructured"/>
        </node3>
    </nodes>
    <transitions jcr:primaryType="nt:unstructured">
        <node0_x0023_node1
            jcr:primaryType="cq:WorkflowTransition"
            from="node0"
            rule=""
            to="node1">
            <metaData jcr:primaryType="nt:unstructured"/>
        </node0_x0023_node1>
        <node1_x0023_node2
            jcr:primaryType="cq:WorkflowTransition"
            from="node1"
            rule=""
            to="node2">
            <metaData jcr:primaryType="nt:unstructured"/>
        </node1_x0023_node2>
        <node2_x0023_node3
            jcr:primaryType="cq:WorkflowTransition"
            from="node2"
            to="node3">
            <metaData jcr:primaryType="nt:unstructured"/>
        </node2_x0023_node3>
    </transitions>
</jcr:root>
See more See less

That’s pretty much it! We’ve covered all the possible cases you’ll encounter with AEM Content Fragment link localization, so you’re all ready to go!

Author: Iryna Ason

Was this article useful for you?

Get in the know with our publications, including the latest expert blogs

End-to-End Digital Transformation

Reach out to our experts to discuss how we can elevate your business

Learn more

Related articles

Tech Tips

Aug 07, 2025

28 min Read

The Complete Guide to Securing Your AEM Pages with Okta and SAML

Business

Mar 19, 2025

15 min Read

10 Mistakes to Avoid When Migrating to AEMaaCS

Business

Feb 17, 2025

7 min Read

Unlocking the Future of DX with AEMaaCS
